Waveshare PCIe to M.2 Mini Adapter for Raspberry Pi 5

The Performance Catalyst: PCIe to M.2 SSD Adapter

The Waveshare PCIe to M.2 Mini adapter is a critical performance enabler for the Raspberry Pi 5, designed for users demanding high-speed storage solutions. This adapter transforms the Pi 5's internal PCIe interface into a functional M.2 slot, primarily supporting NVMe solid-state drives. It is an essential component for anyone pushing the boundaries of the Raspberry Pi platform, offering a significant upgrade over traditional microSD card storage.

The adapter facilitates a direct, high-bandwidth connection. This is crucial for data-intensive applications. It bypasses the inherent I/O limitations often encountered with slower storage mediums, allowing the Pi 5 to operate with unprecedented responsiveness and data throughput.

Compared to standard USB-attached SSDs, a PCIe-connected NVMe drive offers dramatically lower latency and higher sustained transfer speeds. This direct integration optimizes the entire system's I/O pipeline, making the Pi 5 viable for tasks previously restricted to more powerful desktop systems, such as advanced home servers, high-performance computing clusters, or even light virtualization.

Architectural Backbone: PCIe Interconnect

The adapter explicitly supports PCIe Gen2 and Gen3 protocols, offering substantial bandwidth for modern NVMe SSDs. PCIe Gen3 provides up to 8 GT/s (gigatransfers per second) per lane, effectively doubling the theoretical throughput of Gen2. This capability is paramount for maximizing the performance of attached storage devices.

Such high-speed interconnects are vital. They ensure that the SSD is not bottlenecked by the host interface. This direct access to the PCIe bus minimizes communication overhead, translating directly into faster boot times, quicker application loading, and superior handling of large files and databases.

Unlike many entry-level storage solutions that rely on USB 3.0 or older SATA standards, this adapter leverages the native PCIe capabilities of the Raspberry Pi 5. This architectural advantage allows for a direct, low-latency data path, which is indispensable for applications requiring consistent, high-speed I/O performance, such as real-time data processing or high-definition media streaming.

Storage Versatility: M.2 Form Factors

The Waveshare adapter is engineered to accommodate M.2 2230 and 2242 form factor SSDs. These dimensions refer to the physical length of the NVMe drive (30mm and 42mm, respectively), offering flexibility in selecting compact, high-performance storage. The board includes multiple mounting points to secure either size drive.

This adaptability in form factor is a practical consideration. It allows users to choose SSDs based on availability and price without compromising on compatibility. Smaller drives are often preferred for their minimal footprint, especially in compact Pi 5 enclosures, ensuring a neat and efficient build.

Many generic M.2 adapters only support a single form factor, limiting user choice. This dual-form factor support ensures broader compatibility with a range of available NVMe SSDs, providing more options for system builders. It is a thoughtful design choice.

Power Delivery Integrity: Sustained Performance

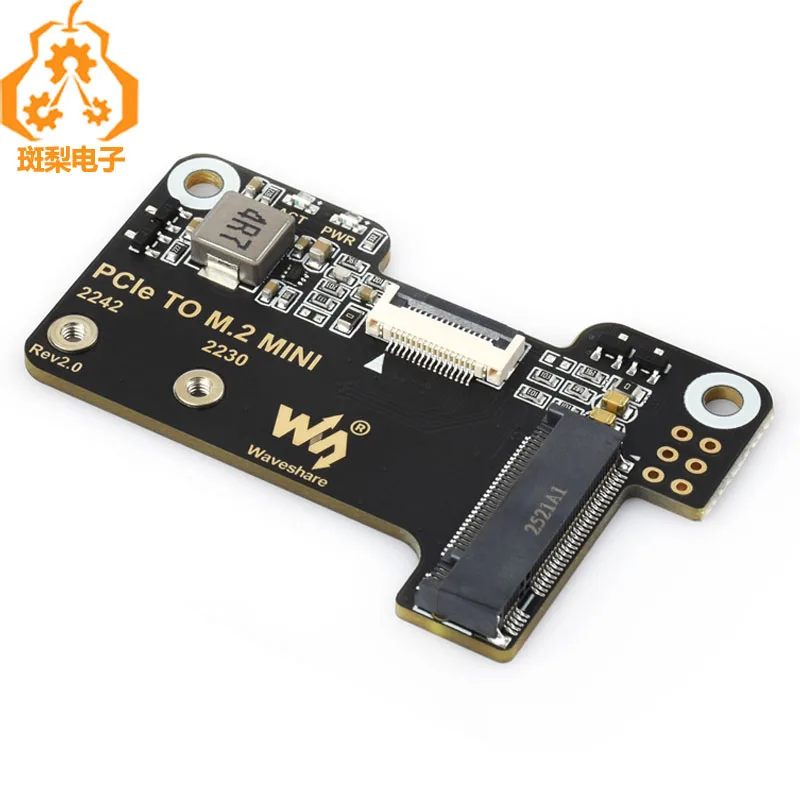

Careful inspection of the board reveals components dedicated to power regulation, including visible capacitors and what appears to be a DC-DC converter. Proper power delivery is non-negotiable for stable high-performance operation of NVMe SSDs, which can draw significant current, especially during peak loads. Stable power is crucial.

An NVMe drive operating under insufficient or unstable power conditions can experience performance degradation, data corruption, or even premature failure. The integrated power solution on this adapter aims to provide a clean, consistent power supply to the attached SSD, mitigating these risks and ensuring reliable operation even when the system is under stress.

Unlike simpler, unpowered adapters that rely solely on the host device's power, this adapter appears to incorporate active power conditioning. This design choice is critical for maintaining the integrity of data transfers and extending the lifespan of the SSD, especially in overclocked or continuously running Raspberry Pi environments. It ensures peak efficiency.

Thermal Dynamics: Heat Management for Longevity

While the adapter itself is a passive component, its role in facilitating high-speed NVMe storage brings thermal considerations to the forefront. NVMe SSDs, particularly high-performance Gen3 models, can generate considerable heat during sustained read/write operations. Effective heat dissipation is vital for maintaining optimal SSD performance and longevity.

Overheating can lead to thermal throttling, where the SSD automatically reduces its performance to prevent damage. This directly impacts the system's overall speed. Users integrating this adapter should plan for adequate airflow within their Raspberry Pi 5 enclosure or consider adding a dedicated heatsink to the NVMe drive itself to prevent performance degradation.

Compared to cooler-running SATA SSDs or microSD cards, NVMe drives demand more attention to thermal management. The compact nature of M.2 devices means heat is concentrated, making external cooling solutions a practical necessity for any serious performance build using this adapter. This proactive approach safeguards investment.

Mounting and Integration: Secure System Build

The adapter features multiple mounting holes, facilitating a secure and stable installation onto the Raspberry Pi 5. The design ensures the M.2 SSD is firmly held in place, preventing movement or accidental disconnection, which is crucial for a robust and reliable system. A secure fit is paramount.

Proper physical integration prevents issues that can arise from vibrations or accidental bumps, particularly in portable or embedded applications. The precise alignment of the PCIe connector and M.2 slot indicates a well-engineered board, designed for straightforward and dependable assembly.

Generic adapters sometimes suffer from flimsy mounting mechanisms or poor fitment, leading to instability. This adapter's clear mounting points and robust PCB construction suggest a focus on long-term reliability and ease of installation, ensuring the attached SSD remains securely connected under various operating conditions.

The Overclocker's Edge: Pushing the Pi 5's Limits

This PCIe to M.2 Mini adapter unlocks a new dimension of performance for the Raspberry Pi 5, transforming it into a more formidable computing platform. It addresses the critical bottleneck of storage I/O, allowing the Pi 5's CPU and GPU to fully utilize their processing power without waiting for data. Imagine the Pi 5 running complex Docker containers with lightning-fast storage access, or serving files from a robust NAS with minimal latency.

Picture a scenario where your custom-built Pi 5 server handles multiple concurrent requests for large datasets, each transaction completed in a fraction of the time previously possible. Envision the responsiveness of a desktop-like experience, where applications launch instantly and large files transfer without a hitch. This adapter is not merely an accessory; it is a fundamental upgrade that redefines the capabilities of the Raspberry Pi 5, enabling projects that demand uncompromising speed and stability. The potential is immense. The performance gains are tangible. This is the foundation for a truly high-performance Raspberry Pi 5 system, ready to tackle the most demanding tasks with ease and efficiency, providing a robust and reliable backbone for all your intensive computing needs.
