M.2 NVMe to PCIe 3.0 x16 Riser Cable Adapter
Official Store Deal
Expert Analysis Overview
The M.2 NVMe to PCIe 3.0 x16 Riser Cable Adapter is a specialized component designed for system builders seeking to expand their motherboard's capabilities by utilizing an available M.2 NVMe slot for a full-sized PCIe expansion card. This adapter provides a crucial pathway for integrating high-performance peripherals like GPUs, network cards, or other specialized PCIe devices into systems where traditional PCIe slots are scarce or inconveniently placed. Its design prioritizes flexible integration, offering a solution for compact builds or scenarios requiring optimized internal airflow and component spacing. The adapter's construction, featuring a flexible ribbon cable and a dedicated SATA power input, speaks to a focus on stable operation and adaptable system layouts, which are critical considerations for maintaining system health and longevity.
This riser cable effectively transforms an M.2 NVMe M-Key slot into a functional PCIe 3.0 x16 physical slot. This is a significant capability. Many modern motherboards, especially smaller form factors, come equipped with M.2 slots for high-speed storage but may lack sufficient full-sized PCIe slots for additional expansion cards. The adapter bridges this gap, allowing users to install a standard PCIe card in a non-traditional location. This expansion is vital for users needing specific hardware, such as a dedicated graphics card in an ITX build that might otherwise only have an M.2 slot available, or a specialized capture card in a server that has exhausted its primary PCIe lanes.
Unlike direct board-mounted M.2 to PCIe adapters, the flexible cable design of this unit offers unparalleled placement versatility. This flexibility is a key ergonomic consideration for system builders, reducing the physical strain of forced component alignment. It allows the PCIe card to be positioned away from the motherboard, which can be advantageous for thermal management and access to other components. For example, in a densely packed mini-ITX case, a rigid adapter might block airflow or prevent the installation of a CPU cooler. This flexible riser mitigates such issues, enabling a cleaner and more efficient internal layout.

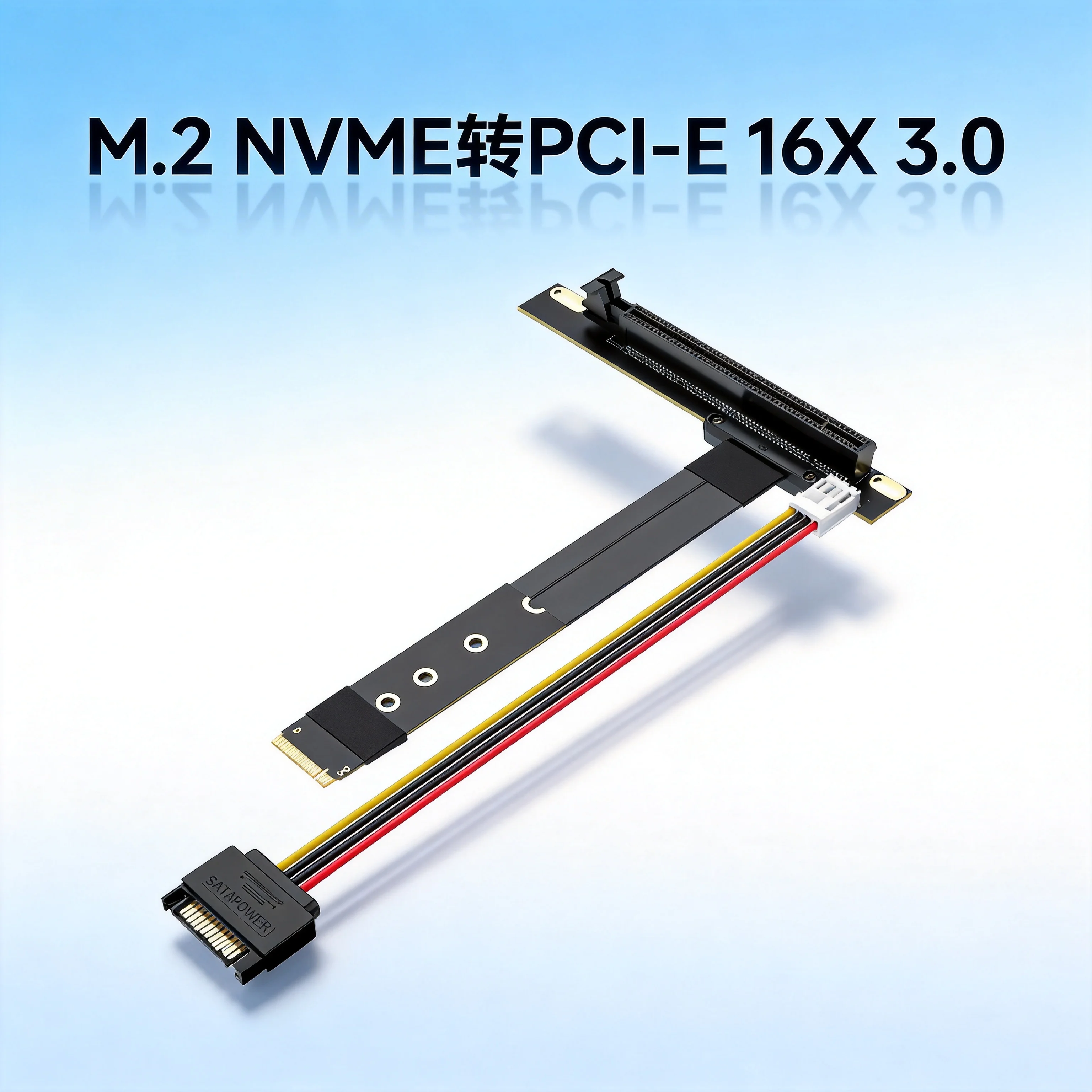

The adapter features a flat, flexible ribbon cable, approximately 135mm in length as indicated by the product diagrams. This specific cable type is chosen for its pliability and reduced bulk compared to traditional round cables. Its thin profile minimizes airflow obstruction within the PC case, a critical factor for maintaining optimal operating temperatures for all components. The cable's flexibility also allows for precise routing, enabling system builders to create a tidy and organized internal aesthetic, which contributes to overall system health by preventing cable interference with fans or other moving parts.
Physical integration is straightforward. The M.2 end connects directly to an M-Key NVMe slot, while the other end provides a standard PCIe 3.0 x16 slot. The design includes multiple mounting holes for securing M.2 NVMe SSDs of various lengths (2280, 2260, 2242), ensuring broad compatibility. This attention to detail in physical design simplifies the installation process, reducing the need for awkward maneuvers or custom modifications. The inclusion of a SATA power connector further enhances stability, providing dedicated power to the connected PCIe device and offloading power delivery from the M.2 slot itself, which is often not designed for the higher power draw of a full PCIe card.
While the physical slot is x16, the electrical connection from the M.2 NVMe slot typically operates at PCIe 3.0 x4. This is an important distinction for performance expectations. For most non-GPU applications, an x4 connection provides ample bandwidth. For example, a high-speed network card or a capture card will likely operate without any noticeable performance degradation. However, a high-end graphics card, while physically fitting, would be bandwidth-limited by the x4 connection, potentially impacting its maximum performance. The product explicitly states "No Performance Loss" for PCIe 3.0 x4 transmission, which accurately reflects its capability within the M.2 interface's limitations.
The inclusion of a SATA independent power supply is a significant advantage for stable operation. PCIe cards, especially graphics cards or other high-power devices, can draw substantial power. Relying solely on the M.2 slot for power could lead to instability or damage to the motherboard. By providing a dedicated SATA power input, the adapter ensures that the connected PCIe device receives adequate and stable power, preventing voltage drops or power fluctuations that could affect system reliability. This independent power path is a critical design choice for extending the lifespan of both the motherboard and the connected peripheral, reducing the risk of component failure due to insufficient power delivery.
Installing the M.2 NVMe to PCIe Riser Cable Adapter is designed to be a user-friendly process. The M.2 M-Key connector slides into the corresponding slot on the motherboard, secured by a single screw. The flexible cable then routes to a desired location within the chassis, where the PCIe x16 slot can accommodate the expansion card. The adjustable screw holes on the M.2 adapter board allow for securing various lengths of M.2 NVMe SSDs, ensuring a snug and stable fit. This modular approach to installation minimizes potential points of failure and simplifies future maintenance or upgrades.
The physical dimensions, including the 135mm cable length, provide sufficient reach for most standard PC cases, from compact ITX builds to larger ATX towers. This length is a thoughtful ergonomic consideration, allowing for strategic placement without excessive cable slack or tension. The ability to position the PCIe card away from the motherboard can also improve accessibility to other components, making tasks like RAM upgrades or CPU cooler maintenance less cumbersome. This ease of access contributes to a more pleasant and less frustrating building experience, reducing the physical strain often associated with working in confined PC spaces.
This riser cable offers substantial value for users looking to maximize their existing hardware without investing in a new motherboard. It provides a cost-effective solution for adding a PCIe card when all other slots are occupied or when a specific layout is desired. For instance, in a system with a limited number of PCIe slots, this adapter can free up a primary x16 slot for a high-performance GPU while allowing a secondary card (like a capture card or sound card) to operate via the M.2 slot. This optimization extends the utility and lifespan of current motherboards, offering a compelling return on investment.
The adapter's design also contributes to a more organized and thermally efficient system. By allowing flexible placement of components, it can help prevent hot spots and improve overall airflow, leading to cooler operating temperatures and potentially longer component lifespans. This focus on system health and longevity is an often-overlooked aspect of component ergonomics. A well-organized internal layout also simplifies troubleshooting and maintenance, reducing the time and effort required to service the system. The adapter is a practical tool for anyone aiming to build a highly functional, aesthetically pleasing, and easy-to-maintain computer system.
Imagine a system where every component breathes freely, where cables are neatly routed, and where every expansion card finds its optimal place without compromise. This adapter helps achieve that vision, turning motherboard limitations into opportunities for creative and efficient system design. It is a vital link in crafting a personalized computing environment that performs reliably and remains accessible for future enhancements.
